Test Adaptor for MOTORTECH Ignition Controllers

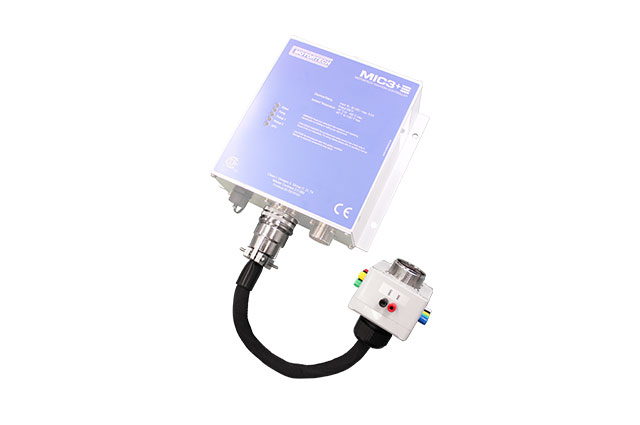

To enable operators and service personnel to check input signals to the ignition controller in a simple way, MOTORTECH offers a Test Adaptor that links between the 35 pole input connector and the propriate harness.

Terminals located around the test box allow easy access to each input signal entering the ignition controller. By use of a commonly used Digital Scope Meter, the following signals can be checked:

  • Input voltage
  • Analog input signal (4-20mA)
  • Pickup signals
  • Start/Stop signal
  • Go/NoGo signal
  • Timing schedule selection switch (A/B)
