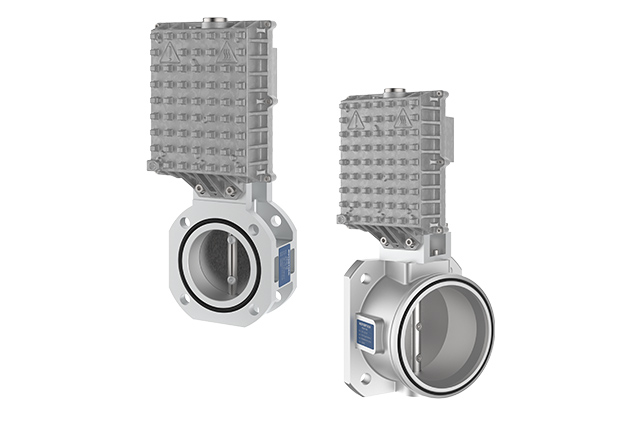

ITB-DC Integrated Throttle Bodies

The new ITB-DC (“Direct Control”) series incorporates the functionality of the established VariStep3 stepper motor driver as a new product line parallel to ITB throttle bodies.

The ITB-DC is designed to perform in COP (continuous operation) applications.

The integration of the stepper motor card saves precious space and wiring effort in the Gensets switch cabinet.

General Features
  • Throttle body series DN50/100/140/152 available with or without o-ring gasket
  • New electronics of stepper motor driver
  • High resolution stepper-motor
  • Military style connector
  • LED to provide device status
  • Wire break detection
  • New safe-position functionality
  • Multiple variants of harnesses available (fieldbus only, analog only, “fully”)
  • Detection of power or step loss, overtemperature or invalid configuration
  • USB interface for programming with MICT Software
  • Error messages via fieldbus AIO.GAS/ InteliSysGas ECU list 1.8
