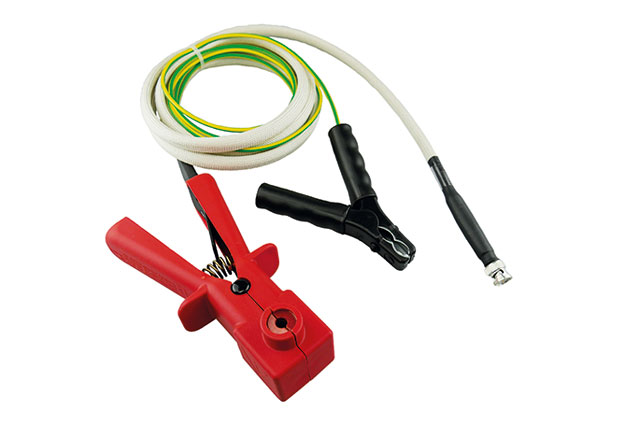

SparkScan1 High Voltage Clamp

SparkScan1 is designed for operators who want to monitor their high voltage traces in a simple way. The capacitive high voltage clamp is connected to a Scope Meter. When attached to a conventional ignition cable (7 mm), the clamb measures the high voltage pulse and via scope screen the operator can analyse the ignition trace.

Measuring high voltage peak (kV) and spark duration (μsec) of all cylinders of an engine in a routine manner, will allow preventive maintenance of the equipment.

Downloads

  • Sales & Service Bulletin
    Sales & Service Bulletin  (274 KB)
  • Manual
    Manual  (3 MB)
