MOT601 Single Cylinder Ignition System

The self-powered MOT601 is a capacitor discharge ignition system for use on spark-ignited, single cylinder gas engines with large flywheels. Closely mounted to the engineʼs flywheel, the electronic components are supplied with power by magnetic charging circuitry.

  • Price effective system and accessories
  • Mainly maintenance-free system due to non-moving parts that wear out
  • All components are available as spare parts and can be used with competitive systems
  • 1 year warranty
  • Applicable for single cylinder engines with different flywheel sizes
  • Self-powered electromagnetic system, no need for external power
  • High primary energy
  • Using crankshaft reference timing
  • High accuracy ignition timing
  • Two separate ignition timings (startup and nominal)
  • Safety shutdown input
  • Supplies panel power

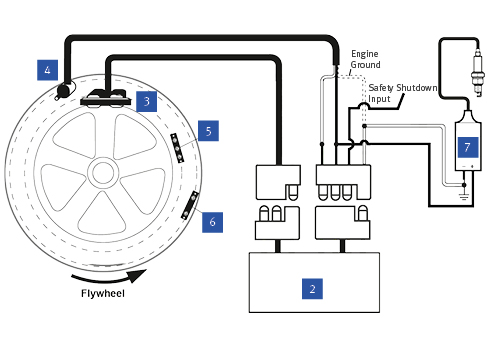

The charging bar (5) with three strong magnets attached to the flywheel passes the charging generator (3) that is attached to the engine in a fixed position at every revolution of the flywheel. At every revolution the generator module charges a capacitor in the ignition module (2) as a result of the magnetic field.

The trigger bar (6) with two magnets, which is likewise attached to the flywheel, passes a pickup coil (4) that is attached to the engine in a fixed position at every revolution of the engine. When the trigger bar passes the pickup coil, the energy stored in the capacitor is discharged into the attached ignition coil (7).
