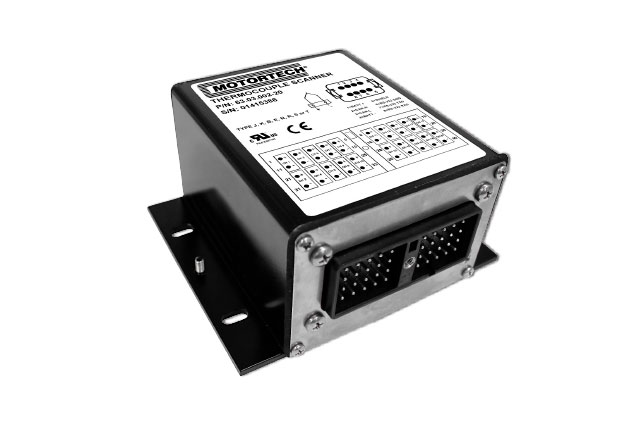

TempScan20 Temperature Module

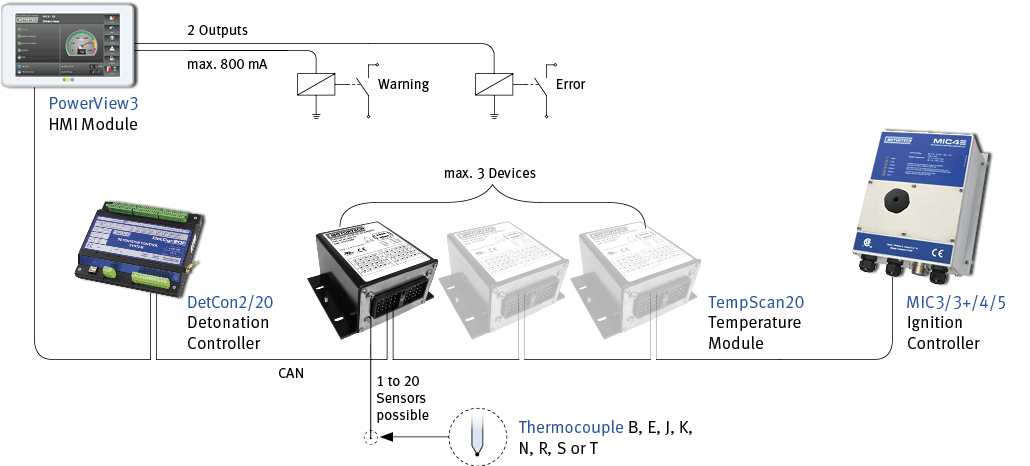

The TempScan20 temperature module monitors up to 20 thermocouples and provides the temperature information to the PowerView3 HMI module via CANopen.

  • Channels are independently configurable as Type J, K, B, E, N, R, S or T thermocouples
  • Temperature information can include
    – Exhaust temperature
    – Winding temperature
    – Fluid temperature
  • No additional programming or configuration required
  • Integral diagnostics determine thermocouple integrity
  • All channels are fully isolated from the CAN line and from the power supply
  • The temperature module features rugged packaging and watertight connectors for an IP65 rating
