PowerView3 Detonation Control Visualization

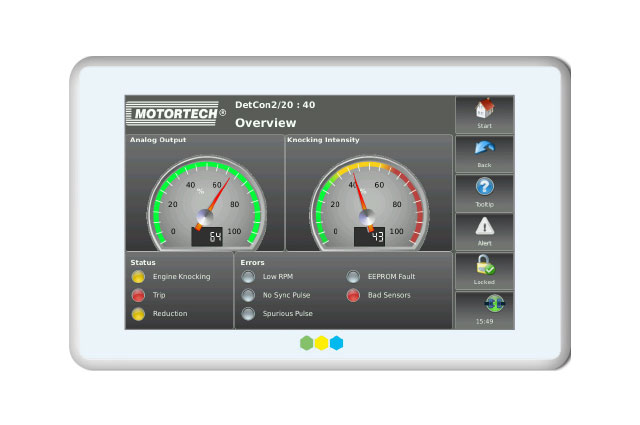

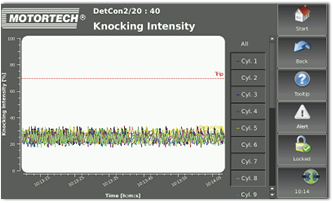

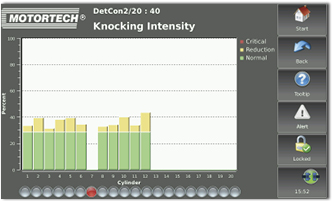

The operating data of the DetCon Detonation Control system will be completely visualized via HMI module (Human Machine Interface). The overview screen shows the relevant information as engine knocking, knock intensity and status for activated load reduction or emergency shutdown of engine.

The control keys guarantee simple navigation through the different display pages and menus. All in all the PowerView3 HMI module is also able to provide error diagnostics on-site without requiring a laptop!

The PowerView3 is also available for data visualization of:

  • MIC Ignition Control (MIC3/3+, MIC4 and MIC5 series)
  • TempScan20 Temperature Module

Downloads

  • Sales Flyer PowerView
    Sales Flyer PowerView  (1 MB)
  • Operating Manual PowerView3
    Operating Manual PowerView3  (6 MB)
  • Sales & Service Bulletin Extended Functions
    Sales & Service Bulletin Extended Functions  (208 KB)
  • Sales & Service Bulletin Enclosure with Sight Window
    Sales & Service Bulletin Enclosure with Sight Window  (194 KB)

Software

Software Package Firmware Version 1.0.6

Includes firmware version 1.0.6 for BSP (Board Support Package) 1.7.0 and 1.41.0 and documentation
